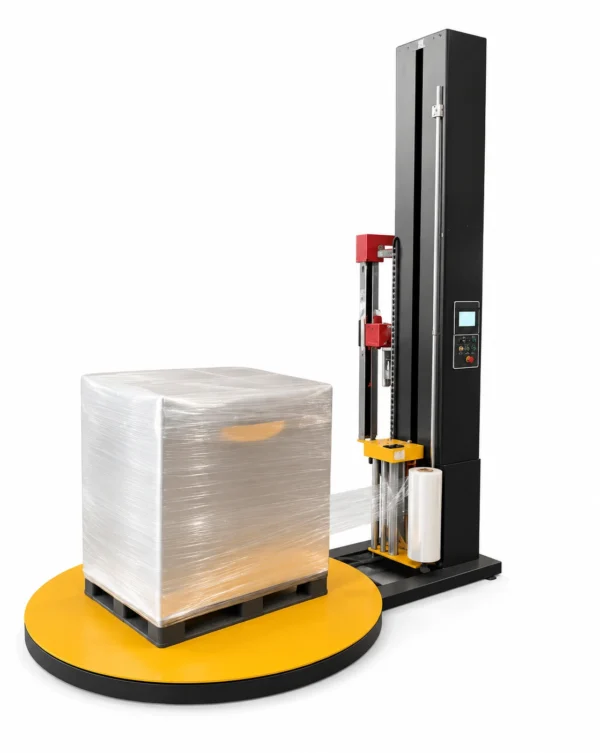

Stretch Film Wrapping Machinery
XXX -XXX
Machine introduction
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
Technical Parameter
| Parameter | Specification |
|---|---|
| Wrapping Size (LĂW) | 500â1200 mm Ă 500â1200 mm |
| Packing Height (L Type) | 500â2000 mm |
| Packing Efficiency | 20â40 loads/hour |
| Turntable Speed | 0â12 rpm |
| Turntable Diameter | Diameter: 1650 mm, Height: 85 mm |
| Turntable Loading (Max) | 2000 kg |
| Up-Down Frame | Double-chain, Variable speed |
| Film Carriage | Pre-stretch |
| Control System | PLC |
| Machine Weight (Max) | 700 kg |
| Machine Size | 2650 Ă 1650 Ă 2400 mm |
| Packing Size | 2650 Ă 1650 Ă 700 mm |
| Electrics | Single-phase 220V / 50Hz |
| Power | Turntable: 0.75 kW Film carriage: 0.3 kW Up-down: 0.4 kW |
